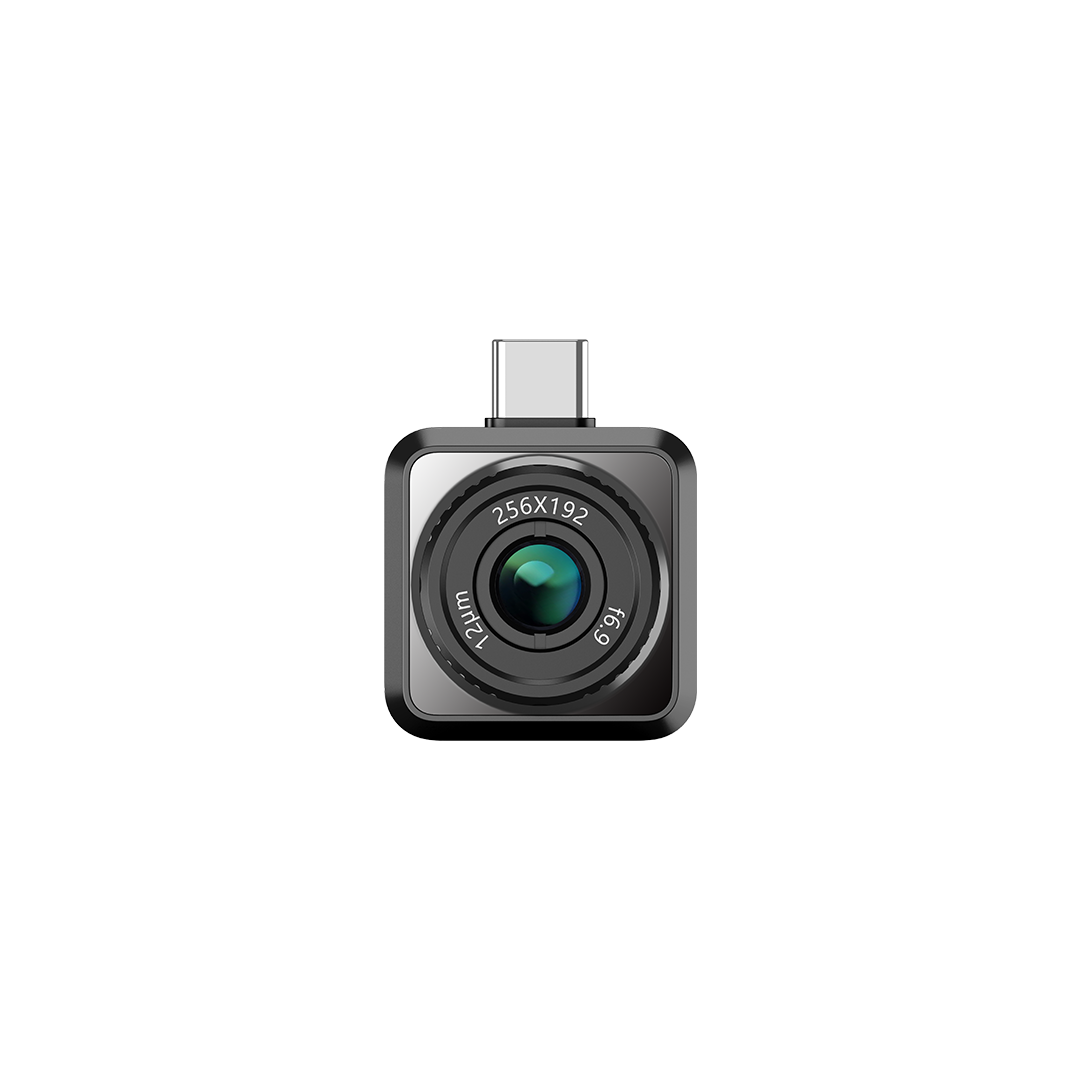

Mini2Plus V2 Thermal Imager

Name: Mini2Plus V2 Thermal Imager
Brand: HIKMICRO
SKU: HM-TJ32-7RF-MINI2Plus V2
Price: 262.00 GBP
Availability: OutOfStock

SKU: HM-TJ32-7RF-MINI2Plus V2

£262.00

Sold out

The Mini2Plus V2 is a versatile smartphone thermal camera with manual focus for inspecting homes and troubleshooting HVAC problems. It offers high thermal resolution, SuperIR image enhancement, and accurate temperature readings. Compatible with iOS and Android devices, it's a convenient and reliable tool for thermal imaging.

Professional thermal imaging anywhere

Weighing just 24g, the Mini2Plus V2 fits easily into a pocket and connects directly to your smartphone, delivering professional thermal imaging whenever it's required.

Precise manual focus control

The adjustable focus lens allows users to fine-tune image sharpness for close-range inspections and distant targets, providing greater flexibility than fixed-focus thermal cameras.

Enhanced thermal detail with SuperIR

SuperIR image enhancement technology improves thermal image clarity in both live viewing and captured images, helping users identify faults and temperature variations more effectively.

Product Specification

Infrared Image

IR Resolution

256 × 192 (49,152 pixels)

SuperIR

Yes, on captured images and live view

NETD

<40mK (@25°C, F#=1.0)

Image Frequency

25Hz

Detector Pitch

12μm

Spectral Range

7.5 to 14μm

Focal Length

6.9mm

F-number

F1.0

Field of View

25° × 18.8°

Minimum Focus Distance

0.1m (0.33ft)

Focus Mode

Manual Focus

Image Display

Colour Palettes

White Hot / Black Hot / Rainbow / Ironbow / Sepia / Color / Ice Fire / Rain / Red Hot / Green Hot / Dark Blue / Combined

Image Modes

Thermal / Visual (Phone Camera)

Measurement and Analysis

Object Temperature Range

-20°C to 150°C (-4°F to 302°F)

High Temperature Range

100°C to 400°C (212°F to 752°F)

Accuracy

Max. (±2°C / 3.6°F, ±2%) for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)

Measurement Tools

Center Spot / Hot Spot / Cold Spot / 3 User-Definable Spots / 3 User-Definable Rectangles / 1 User-Definable Line

Level and Span Mode

Auto / Manual

General

Power Consumption

360mW

Interface

USB-C Android / USB-C iOS / Lightning iOS (Includes Lightning to USB-C Adapter)

Device Compatibility

iOS (Version 14 and Later), Android (Version 7 and Later) Smartphones and Tablets, Windows Devices

Software Compatibility

HIKMICRO Viewer App for iOS and Android / HIKMICRO Analyzer Software for Windows

Protection Level

IP40

Drop Test Height

1m (3.28ft)

Working Temperature Range

-10°C to 50°C (14°F to 122°F)

Storage Temperature Range

-20°C to 60°C (-4°F to 140°F)

Weight

Approx. 24g (0.053lb)

Dimensions

26.6 × 26.6 × 25mm (1.05 × 1.05 × 0.98in)

Also Consider

Reviews

Accessories

Downloads

Quick Start Guide User Manual Datasheet
