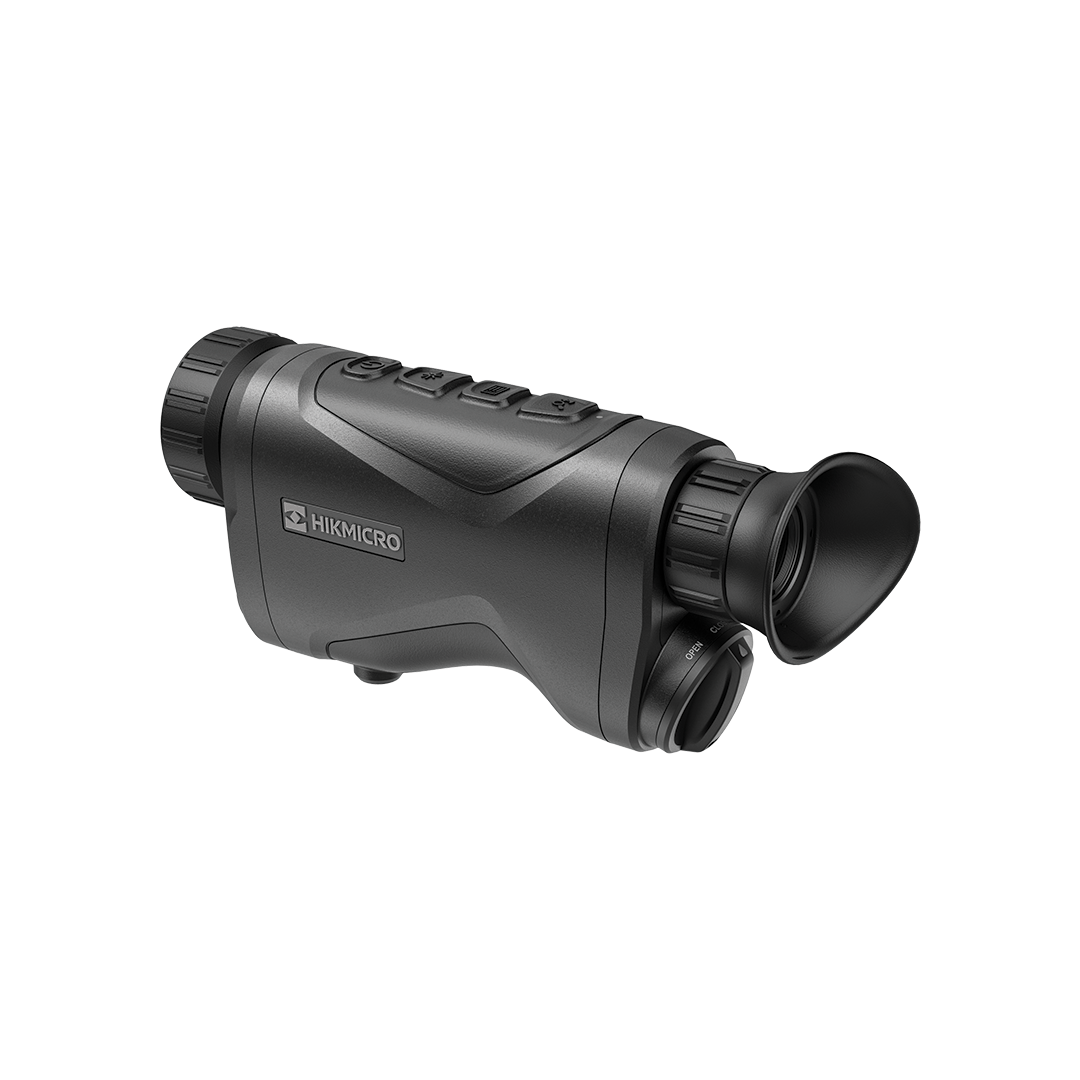

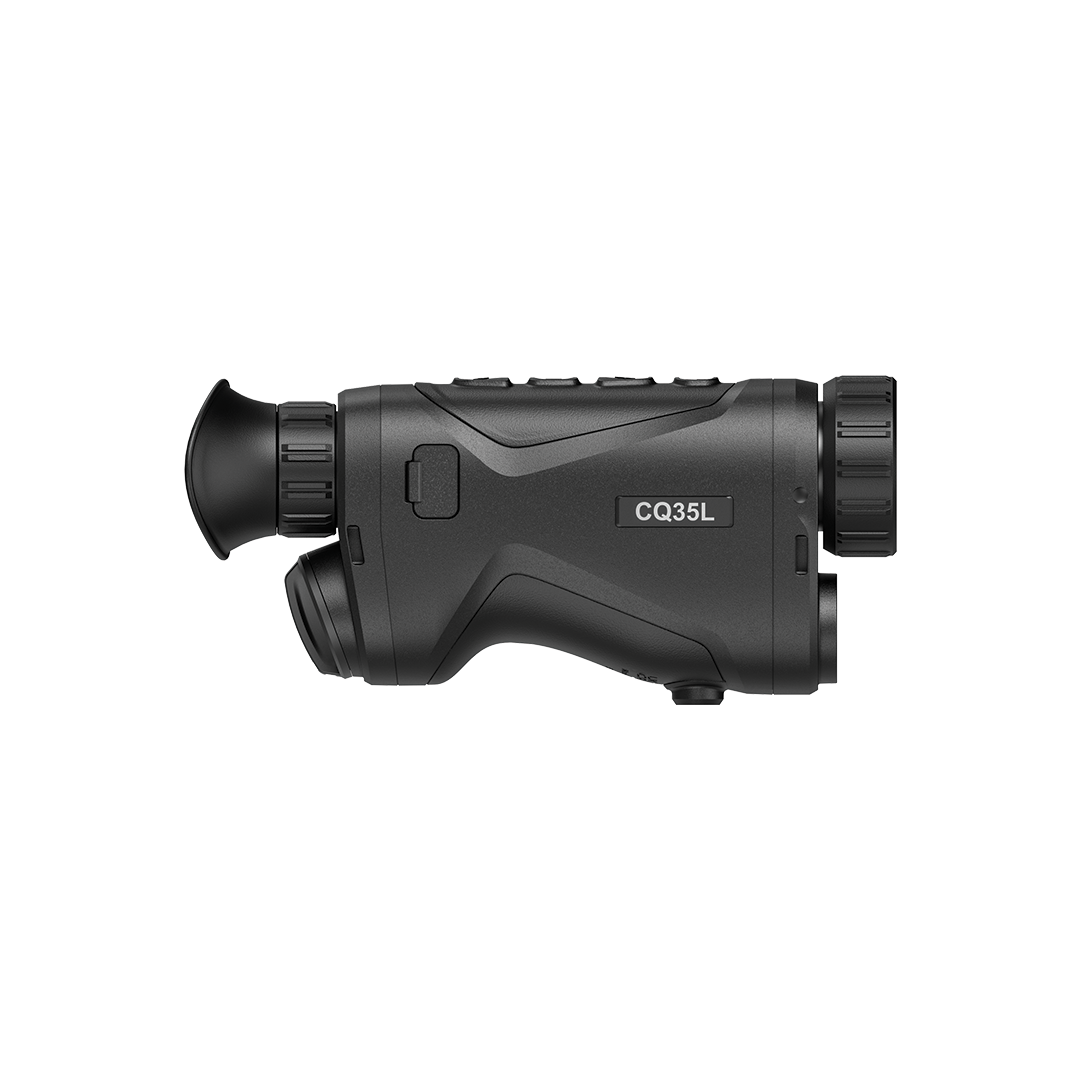

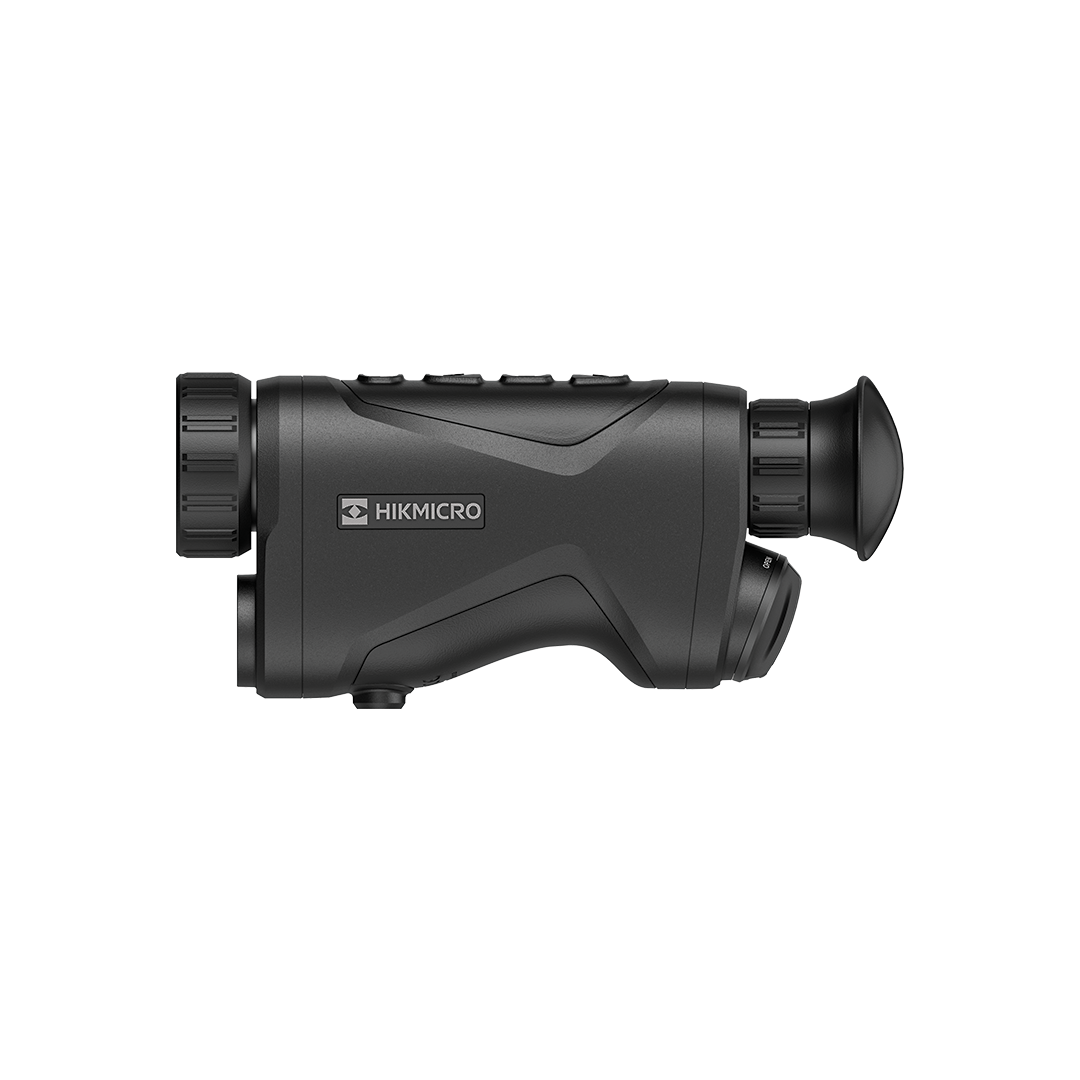

Condor CQ35L Thermal Monocular with LRF
35mm 20mK 640x512px Thermal with LRF
The HIKMICRO Condor Pro CQ35L thermal monocular features a <20mK 640×512 sensor and F1.0 35mm lens for exceptional clarity. With 2.0× magnification, 22m field of view, and 1,800m detection range, it suits varied terrain. A 1,000m laser rangefinder ensures accuracy, while its rugged, ergonomic design, 6-hour battery life, and app connectivity enhance performance.
Condor CQ35L Thermal Monocular with LRF
Sale price£1,699.99
Product Specification
Image Sensor
VOx Uncooled Focal Plane Arrays
Max. Resolution
640 × 512
Frame Rate
50 Hz
Pixel Interval
12 μm
Response Waveband
8 μm to 14 μm
NETD
Less than 20 mK (@25°C), F# = 1.0
Lens (Focal Length)
35 mm, f1.0
Focus Mode
Focus Ring
Detection Range
1800 m
Min. Focusing Distance
3.5 m
Magnification
2.0× to 16.0× (8×)
Field of View(H × V), Degrees / m @100 m
12.5° × 10.0°/21.9 m × 17.5 m @ 100 m Image
Display
Display
1024 × 768, 0.39 inch, OLED
Palettes
Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction) Mode
Auto, Manual, External Correction
Exit Pupil
4 mm
Eye Relief
15 mm
Diopter (Range)
-5 D to +3 D
Brightness Adjustment
Yes
Tone Adjustment
Cold, Warm
Contrast Adjustment
Yes
Image Pro
Yes
Zoom Pro
Yes
System
Record Video
Yes
Capture Snapshot
Yes
Audio Recording
Yes
Standby Mode
Yes
Storage
Yes
PIP
Yes
Hotspot
Yes
Hot Track
Yes
Distance Measurement
Yes
Power Supply
Battery Type
Replaceable and Rechargeable Li-ion Battery
Battery Operating Time
4-hour continuous running with CVBS and hotspot function off (@25°C)
Type-C Power Supply
5 VDC, 2 A Supports External Power Supply
General
Protection Level
IP67
Dimension
184.9 mm × 53 mm × 87.8 mm (7.28" × 2.09" × 3.46")
Weight
400 g without battery
Working Temperature
-30°C to +55°C Laser Rangefinder
Safety Class for Laser
Class 1
Wavelength
905 nm
Max. Measuring Range
1000 m
Measurement Accuracy
± 1 m
Min. Measuring Range
10 m
