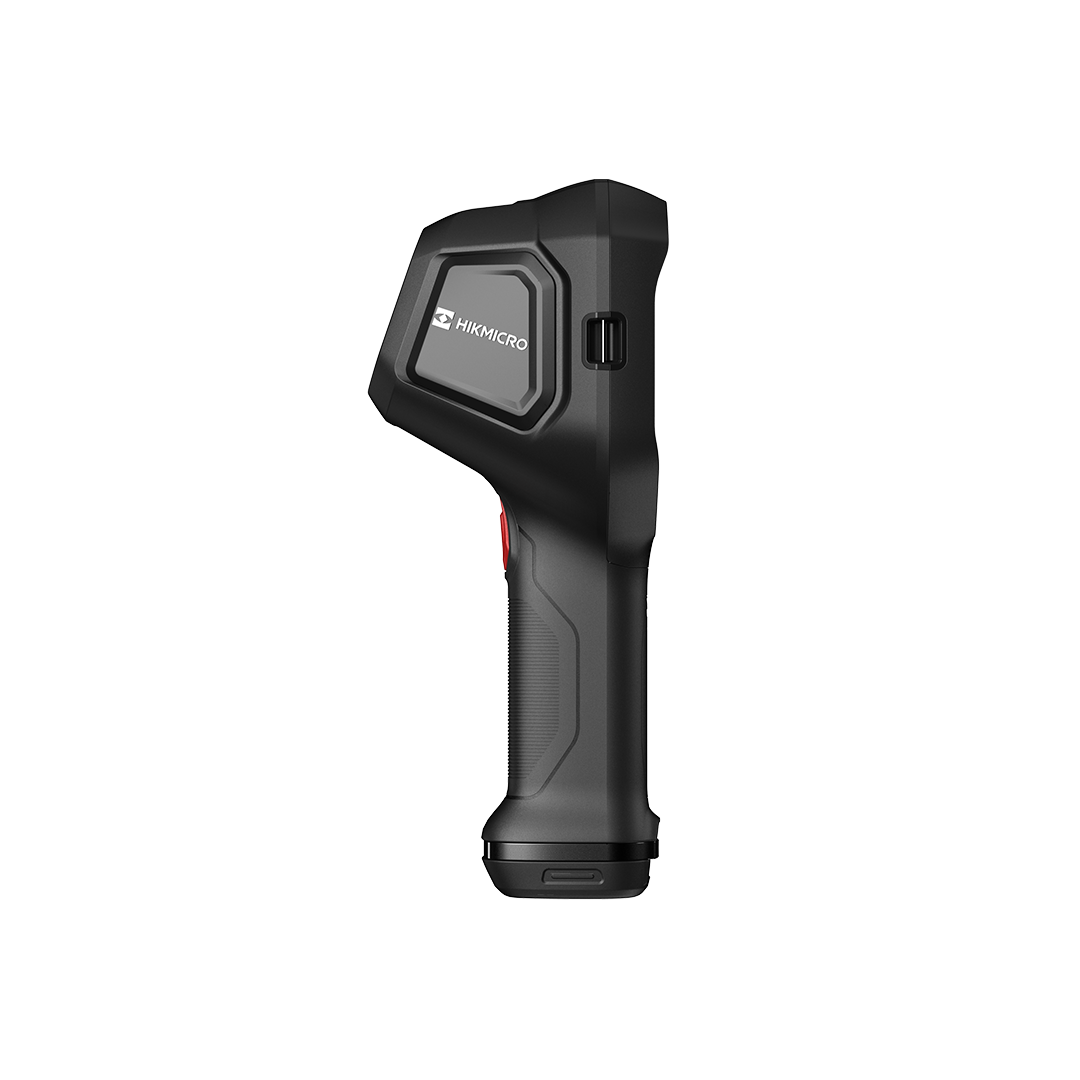

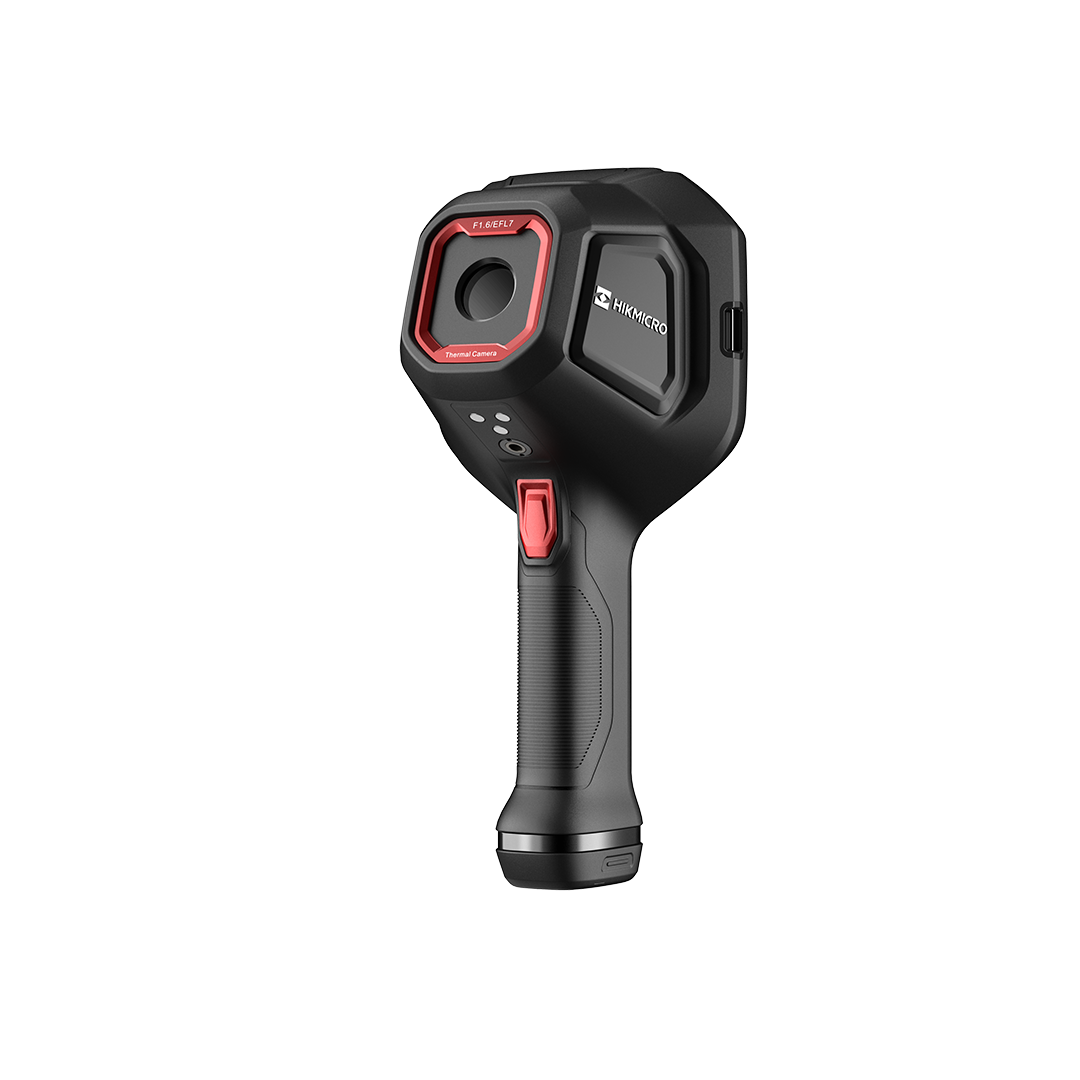

FT31 Firefighting Thermal Camera

Name: FT31 Firefighting Thermal Camera
Brand: HIKMICRO
SKU: HM-TF23-7QF-FT31
Price: 2999.00 GBP
Availability: OutOfStock

SKU: HM-TF23-7QF-FT31

£2,999.00

Sold out

The HIKMICRO FT31 is a high-performance firefighting thermal camera designed for firefighters to observe in total darkness and smoke, helping to save lives, protect property, and keep firefighters safe. Features like object details enhancement, easy-to-navigate buttons and a working temperature range of up to 260°C help you work effortlessly in harsh environments. 8 color palettes for you to choose from satisfy most application scenarios.

Extreme thermal resilience for fireground conditions

Support for temperatures up to 1200°C ensures reliable detection and monitoring of structural heat, hotspots and potential flashover risks during active firefighting operations.

Operational clarity under high-pressure response conditions

Large display, intuitive controls and enhanced image processing improve decision speed, reducing cognitive load for firefighters operating in critical scenarios.

Multiple Colour Palettes to support different scenarios

The FT31 offers 8 colour palettes to adapt thermal visualisation to a variety of environments and operational needs. Whether it's fire detection, search and rescue, structure assessment or everyday inspections, the right palette helps you see more, decide faster, and act with confidence.

Product Specification

Infrared Image

IR Resolution

384 x 288 (110,592 pixels)

NETD

<35 mK (@ 25°C, F#=1.0)

Image Frequency

60 Hz

Detector Pitch

17 μm

Spectral Range

7.5 to 14 μm

Focal Length

7 mm

F-number

F1.6

Field of View (FOV)

54.1°×40.2°

Spatial Resolution (IFOV)

2.42 mrad

Min. Focus Distance

1 m (3.28 ft)

Focus Mode

Focus Free

Image Display

Display

800 × 480 Resolution, 4.3" LCD Screen

Digital Zoom

1x, 2x, 4x

Color Palettes

Basic, Black Hot, White Hot, Fire Detection, Rescue, Hot Area, Cold Area,

Building

Image Modes

Thermal

Measurement and Analysis

Object Temperature Range

-20°C to 1200°C (-4°F to 2192°F)

Accuracy

Max. (± 2°C/3.6°F, ± 2%), for ambient temperature -20°C to 50°C (-4°F to 122°F)

and object temperature above 0°C (32°F)

Measurement Tools

Center Spot, Hot Spot, Cold Spot

Data Storage and Communication

Storage Media

Built-in 32 GB flash memory

Image Storage Capacity

Approx. 100,000 Images

General

USB Interface

USB Type-C

Battery Type

Interchangeable and rechargeable Li-ion battery

Battery Operating Time

Approx. 6 hours

Battery Charging Time

Approx. 3 hours fully charged

Protection Level

IP67, IEC 60529

Drop Test Height

2 m (6.56 ft), IEC 60068-2-31

Safety

IEC 61010-1

EMC

EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-3

Vibration

2g IEC 60068-2-6

Shock

25 g, IEC 60068-2-27

Working Temperature Range

-20°C to 50°C (-4°F to 122°F), 80°C(176°F) - 40min, 150°C(302°F) - 15min, 260°C(500°F - 7min

Relative Humidity

< 95% non-condensing

Storage Temperature Range

-20°C to 60°C (-4°F to 140°F)

Weight

Approx. 1022g (2.25 lb)

Dimension

132.7×276.3×114.6 mm (5.2 × 10.9 × 4.5 in)

Tripod Mounting

UNC ¼”-20
