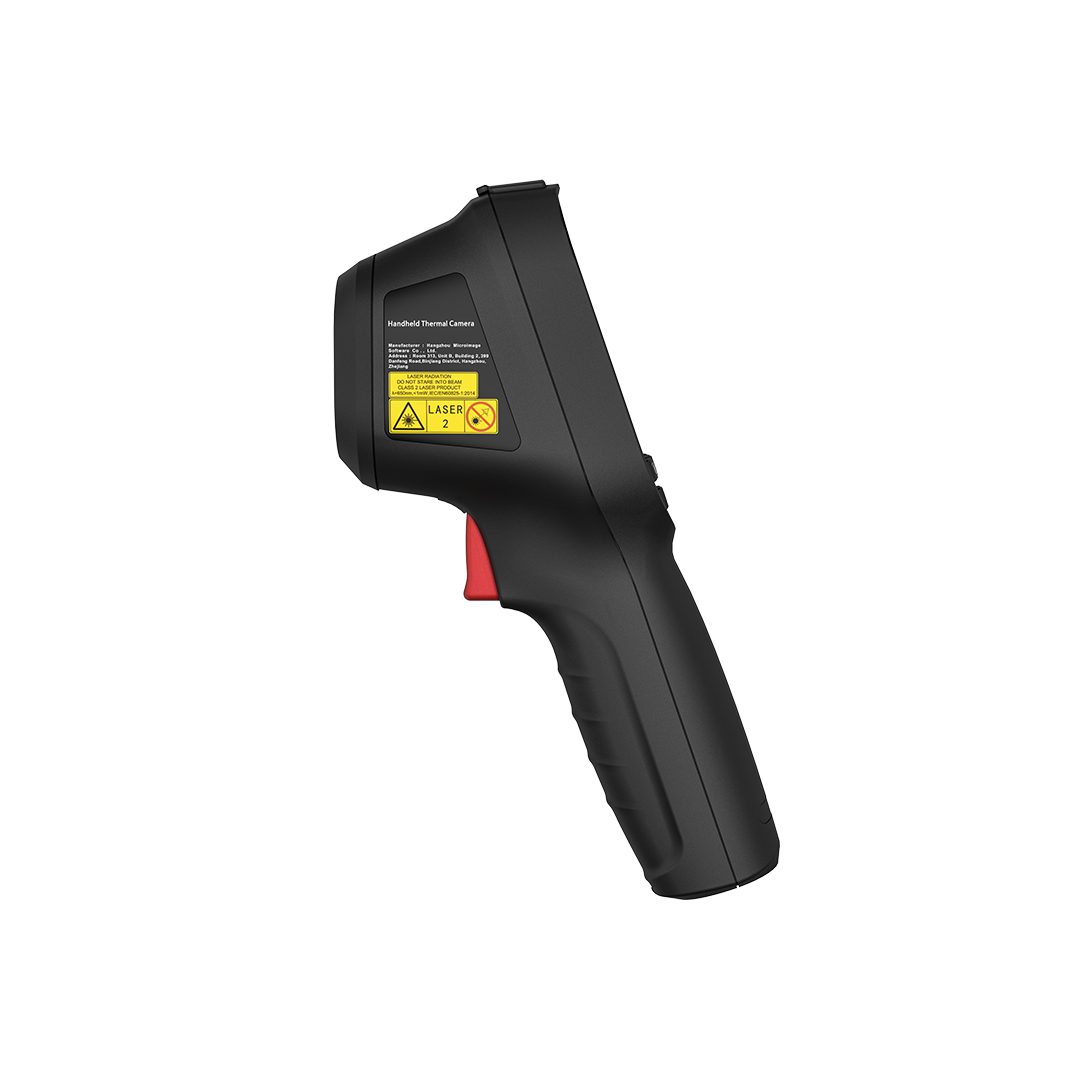

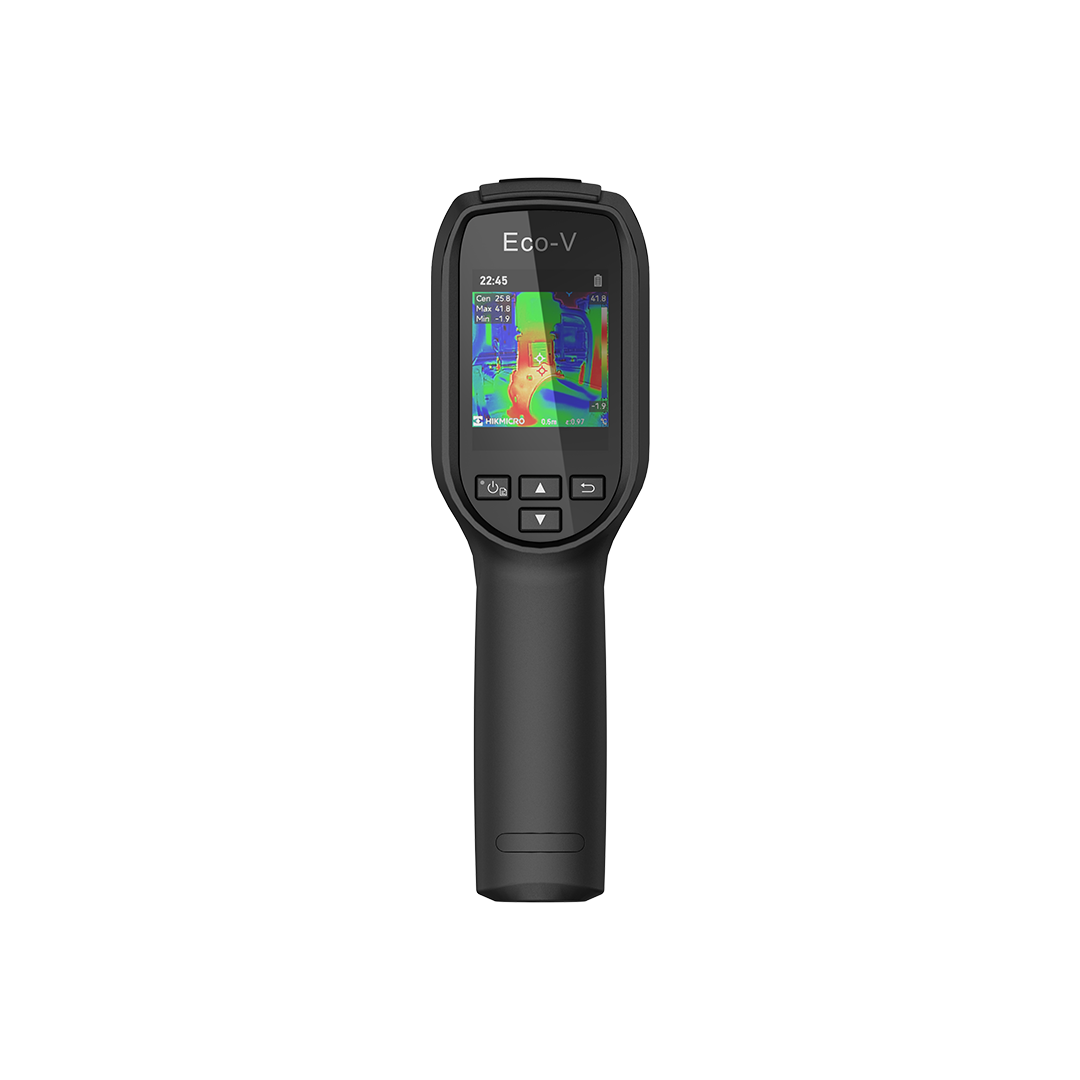

Eco-V Thermal Imaging Camera

Name: Eco-V Thermal Imaging Camera
Brand: HIKMICRO
SKU: HM-TP30-1AQF-ECO-V
Price: 250.00 GBP
Availability: InStock

SKU: HM-TP30-1AQF-ECO-V

£250.00

The HIKMICRO ECO-V combines advanced thermal imaging with enhanced visual inspection capabilities, making it ideal for maintenance, troubleshooting, and building diagnostics. Powered by a 96 × 96 thermal sensor with SuperIR image enhancement, it produces clearer thermal images for accurate fault detection. Users can switch between Thermal, Visual, and Fusion viewing modes to improve target identification and inspection efficiency. Featuring a 50° wide-angle lens, intelligent scene analysis, temperature measurement up to 550°C, IP54-rated durability, and up to 8 hours of runtime, the ECO-V delivers versatile performance for demanding inspection environments.

Quantity:

HIKMICRO Eco-V Thermal Imaging Camera

£250.00

Dual Camera for Greater Clarity

Switch between Thermal, Visual and Fusion modes to see more with every inspection. Fusion mode combines thermal and visual images, making it easier to identify problem areas with added detail and clarity.

Smarter inspections with SuperScene

Intelligent scene recognition automatically identifies common applications such as water leaks, insulation issues, electrical faults and underfloor heating, optimising image settings for faster diagnostics.

Clearer thermal images with SuperIR

Advanced SuperIR image enhancement improves image quality in both live view and captured images, helping users identify faults and temperature variations with greater confidence.

Product Specification

Infrared Image

Detector Pitch

12µm

Distance to Spot Ratio

112:01:00

Field of View

50ºx50º

Focal Length

1.35 mm

Focus Mode

Focus Free

Aperture

F1.0

Image Frequency

25 Hz

IR Resolution

96 x 96

Min. Focus Distance

0.1 m (0.33 ft)

NETD

< 50 mK (@ 25ºC, F# = 1.0)

Spatial Resolution (IFOV)

8.89 mrad

Spectral Range

7.5 to 14 µm

Super IR

240 x 240

Measurements and Analysis

Accuracy

Max (± 2ºC, ± 2%), for ambient temperature 15ºC to 35ºC and object temperature above 0ºC

Level and Span Mode

Auto

Measurement Tools

Center Spot, Hot Spot, Cold Spot

Object Temperature Range

-20ºC to 550º

Image Display

Colour Alarm

Above alarm

Colour Palettes

White Hot, Black Hot, Rainbow, Ironbow, Red Hot

Display

240x320 Resolution, 2.4" LCD Screen

Image Modes

Thermal/Visual/Fusion

Visual Camera

640x480

Data Storage and Communication

Storage Media

Built-in 4 GB flash memory

Image Storage Capacity

Approx. 30,000 Images

General

Battery Charging Time

Approx. 3 hours fully charged

Battery Operating Time

Approx. 8 hours

Battery Type

Rechargeable Li-ion battery

Dimensions

196mm x 117mm x 59 mm

Drop Test Height

2m

Laser

Yes, Class II

Protection Level

IP54

Relative Humidity

< 95% non-condensing

Storage Temperature Range

-40ºC to 70ºC

Tripod Mounting

UNC 1/4"-20

USB Interface

USB Type-C

Weight

335g
