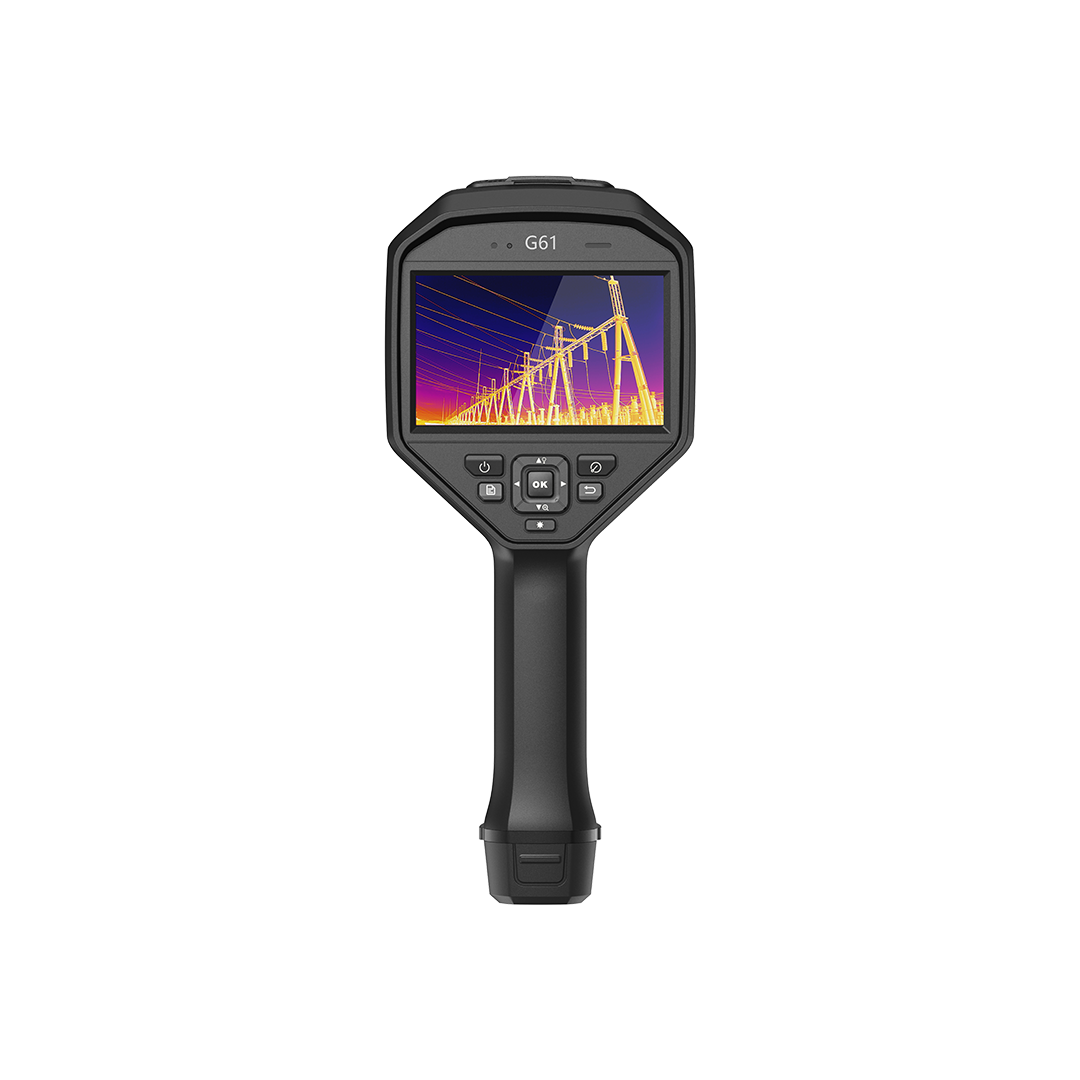

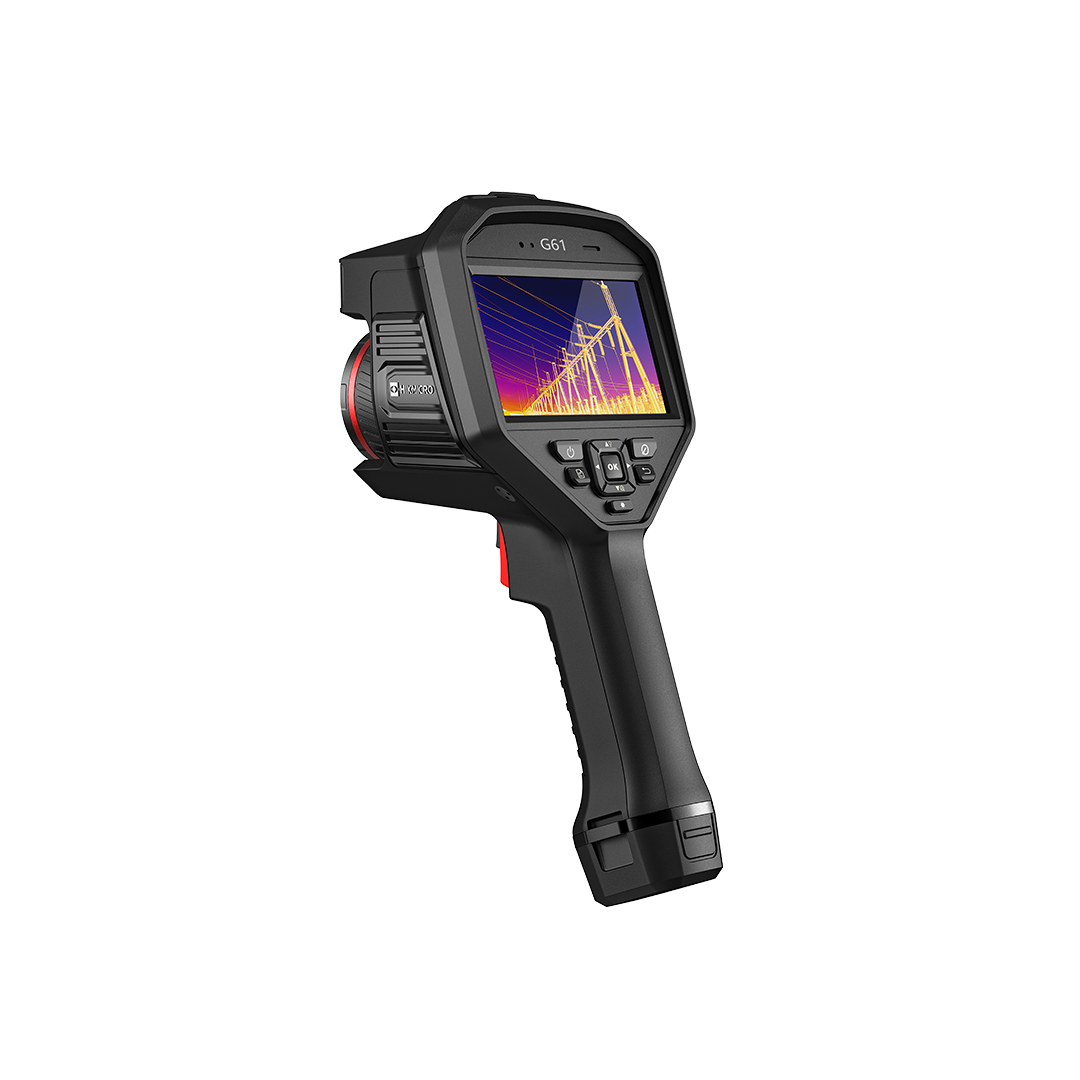

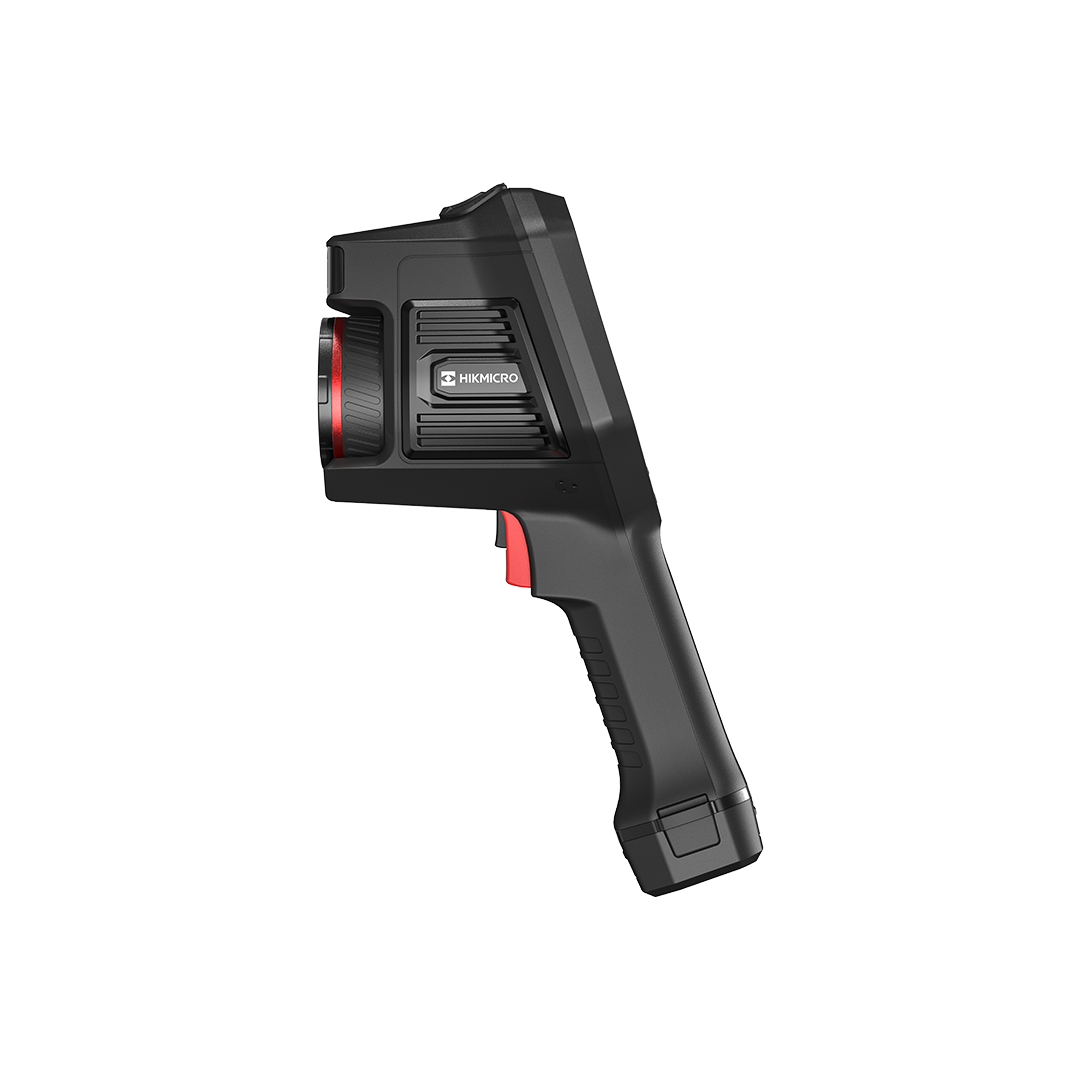

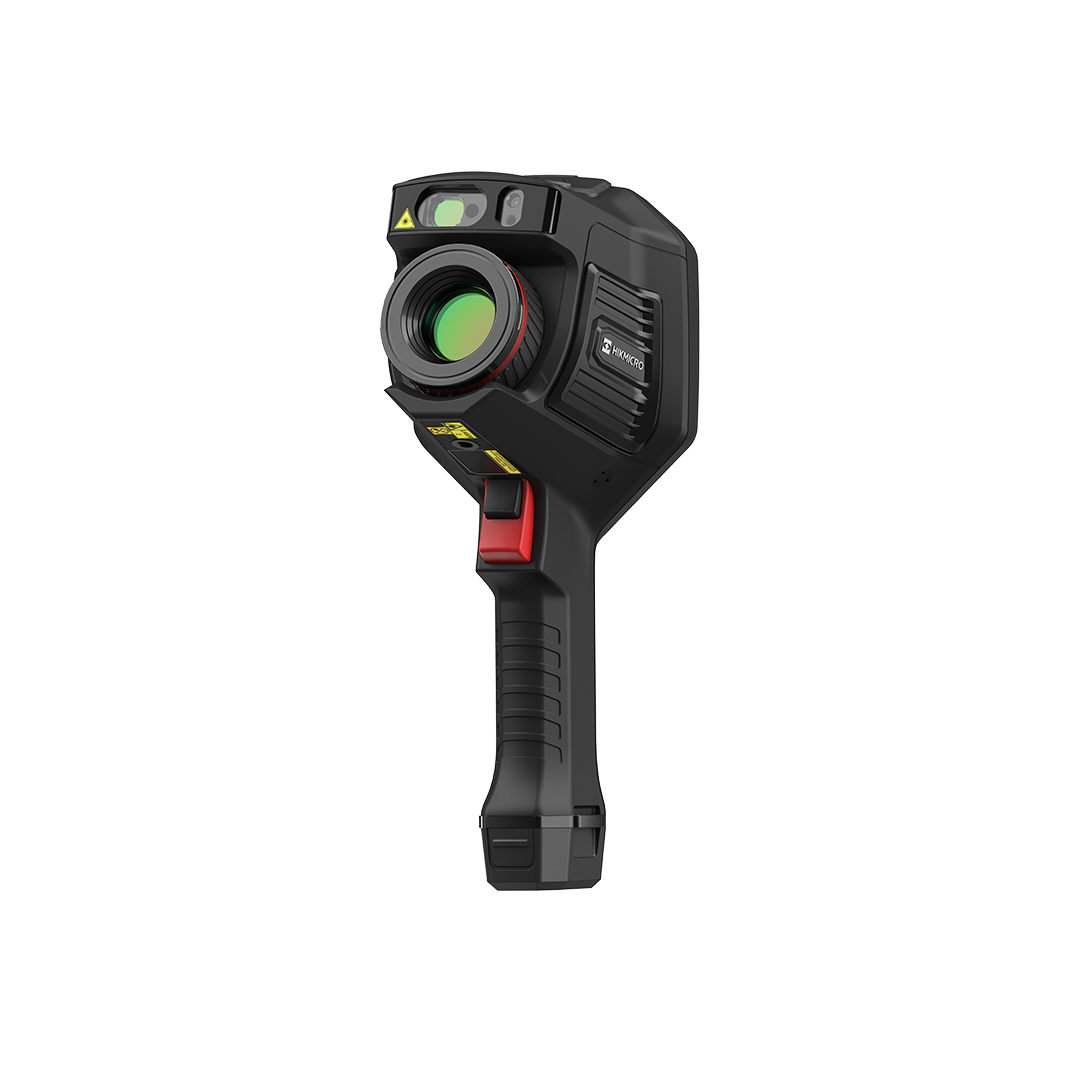

G61 Handheld Thermal Camera

Name: G61 Handheld Thermal Camera
Brand: HIKMICRO
SKU: HM-TP76-25SVF/W-G61
Price: 8278.00 GBP
Availability: OutOfStock

SKU: HM-TP76-25SVF/W-G61

£8,278.00

Sold out

The HIKMICRO G61 high-performance handheld thermal camera is ideal for industrial, predictive, oil and gas, and utility maintenance inspections. HIKMICRO G61 has a high sensitivity (NETD < 35 mK) and high resolution (640 x 480) HIKMICRO VOx detector, and the temperature calibration is up to 650°C. Advanced features help thermal imaging professionals to easily survey equipment and find signs of malfunction, such as GPS and compass annotations, continuous digital zoom, and 1-Tap level and span. Connect HIKMICRO Viewer App or HIKMICRO Analyzer software to transfer, analyze, and share pictures, and generate reports for free.

Industrial-grade thermal precision

The 640 × 480 detector combined with <35mK sensitivity delivers high-definition thermal clarity for detecting early-stage equipment failures and high-risk anomalies in complex industrial environments.

Advanced Analysis & Reporting

Review, analyse and manage thermal images with ease using HIKMICRO Analyser software. Access detailed temperature data from saved images and videos to create clear, professional reports and gain deeper insights after every inspection.

Smart Image Annotations

Keep every inspection organised with voice, text and QR code annotations, while built-in GPS and a compass automatically record location and direction, making reports clearer, faster and easier to manage.

Product Specification

Infrared Image

Detector Pitch

17µm

Field of View

25ºx19º

Focal Length

25 mm

Focus Mode

Laser Assisted AF/Continuous AF/AF/Manual Focus/Touch AF

Aperture

F1.0

Image Frequency

50 Hz

IR Resolution

640 x 480

Min. Focus Distance

0.3m

NETD

< 35 mK (@ 25ºC, F#=1.0)

Spatial Resolution (IFOV)

0.68 mrad

Spectral Range

7.5 to 14 µm

Super IR

1280 x 960

Measurements and Analysis

Accuracy

Max (±2ºC, ±2%)

Level and Span Mode

Auto/Manual/1-Tap Touch-screen

Measurement Tools

Center Spot, Hot Spot, Cold Spot / User-definable: Delta T, 10 spots, 1 line, 5 rectangles, and 5 circle

Object Temperature Range|-20ºC to 650ºC (-4ºF to 1202ºF)Data Storage and Communication

Storage Media

Removable 64 GB Micro SD Card

Annotations

Voice note: max. 60 seconds; Text note: max. 200 characters

Image Storage Capacity

Approx. 60,000 Images

Video File Format

MP4 video and radiometric video

Video Storage Capacity

Approx. 54 hours

Image Display

Colour Alarm

Above/Below/Interval/Insulation/Condensation

Colour Palettes

White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red

Digital Zoom

1.x to 8.x continuous

Display

800x480 Resolution, 4.3"" LCD Touch Screen

Image Modes

Infrared/Visual/Fusion/PIP/Blending

Screen Brightness

Manual/Auto

Visual Camera

3264x2448 (8 MP)

General

Battery Charging Time

Approx. 4 hours fully charged

Battery Operating Time

Approx. 4 hours

Battery Type

Interchangeable and rechargeable Li-ion battery

Bluetooth

Bluetooth 4.2

Dimensions

284.7mm x 120.6mm x 124.5mm

Drop Test Height

2m

EMC

EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-3, EN IEC 61326-1, EN IEC 61326-2-2

HDMI Interface

Yes

Laser

Yes, Class II, Wavelength: 635 nm; Power: < 1 mW

Protection Level

IP54, IEC 60529

Relative Humidity

< 95% non-condensing

Safety

IEC 61010-1

Shock

25g, IEC 60068-2-27

Storage Temperature Range

-20ºC to 60ºC

Tripod Mounting

UNC 1/4"-20

USB Interface

USB Type-C

Vibration

2g, IEC 60068-2-6

Weight

1058g

WiFi

MP4 video and radiometric video

Also Consider

Reviews

Accessories

Downloads

Quick Start Guide User Manual Datasheet Firmware
