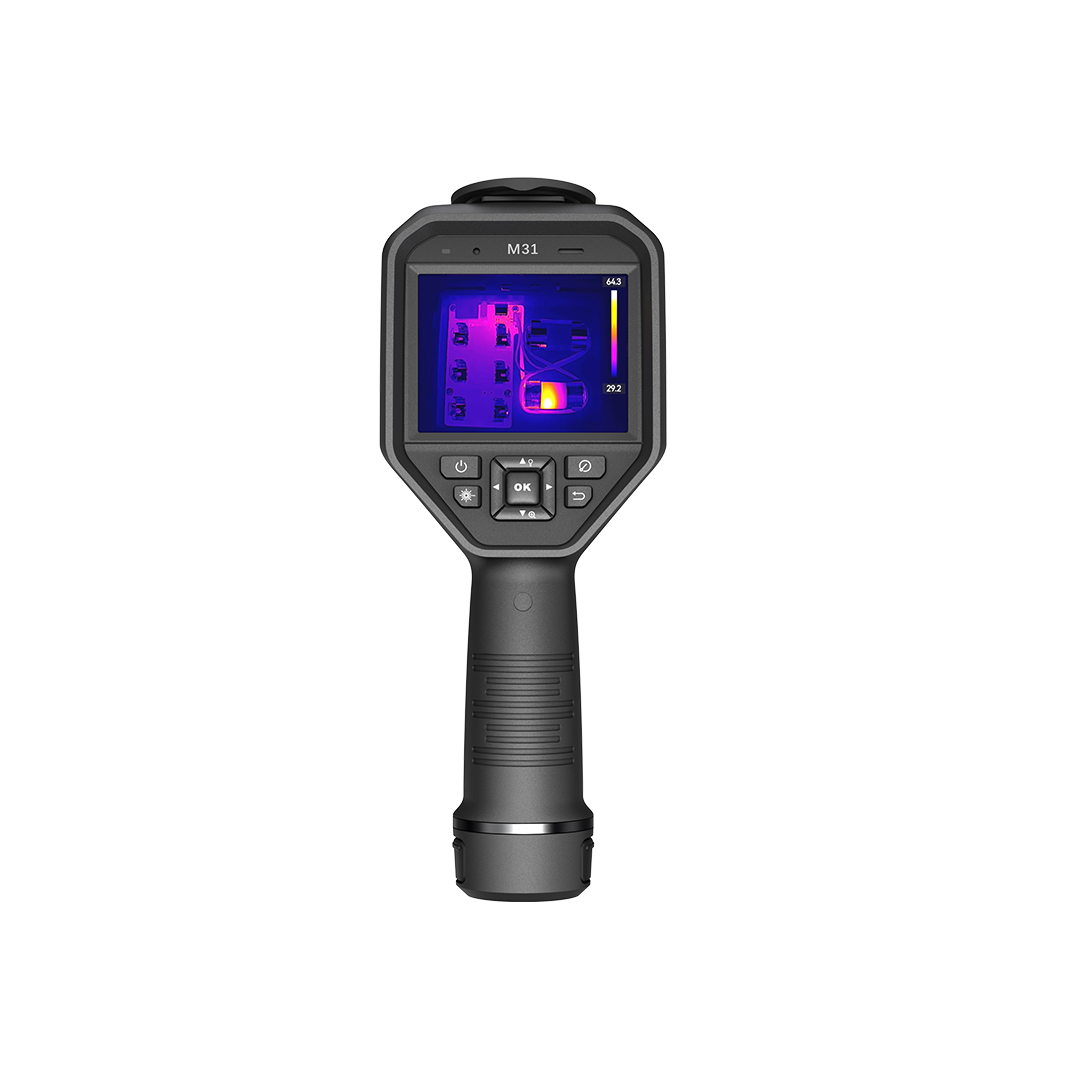

M31 Handheld Thermography Camera
HIKMICRO M31 handheld camera is specially designed for temperature measurement. It’s equipped with a 384 x 288 resolution thermal detector. It helps the staff to quickly find the high-temperature targets in the environment. Meanwhile, it provides assistance with decisions and ensures safety. The device is mainly applied to various industries, such as Building, HVAC and auto industry
M31 Handheld Thermography Camera
Sale price£0.00
Product Specification
IR Resolution
384 × 288 (110,592 pixels)
SuperIR
Yes, on captured images
NETD
<35mK (@25°C, F#=1.0)
Image Frequency
30Hz
Detector Pitch
12μm
Spectral Range
7.5 to 14μm
Focal Length
6.4mm
F-number
F1.0
Field of View
41.1° × 30.5°
Spatial Resolution (IFOV)
1.87mrad
Minimum Focus Distance
0.1m (0.32ft)
Focus Mode
Manual Focus
Image Display
Visual Camera
3264 × 2448 (8MP)
Display
640 × 480 Resolution, 3.5" LCD Touch Screen
Screen Brightness
Manual
Digital Zoom
1.0x to 8.0x Continuous
Colour Palettes
White Hot / Black Hot / Rainbow / Ironbow / Red Hot / Fusion / Rain / Blue Red / Condensation Alarm
Focus Mode Palette
Colour Alarm Above / Below / Interval / Insulation
Image Modes
Thermal / Visual / Fusion / PIP / Blending
Measurement and Analysis
Object Temperature Range
-20°C to 150°C (-4°F to 302°F)
High Temperature Range
0°C to 650°C (32°F to 1202°F)
Accuracy
Max. (±2°C / 3.6°F, ±2%) for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
Measurement Tools
Center Spot / Hot Spot / Cold Spot / 10 User-Definable Spots / 1 Line / 5 Rectangles / 5 Circles
Level and Span Mode
Auto / Manual / 1-Tap Touch Screen
SuperScene+
Electrical Panel / PCB Inspection
Data Storage and Communication
Image Storage Capacity
Approx. 100,000 Images (8MP)
Annotations
Voice Note (Max. 60 Seconds) / Text Note (Max. 200 Characters) / QR Code Note / Picture Note / Tag Note / Sketch
Video Storage Capacity
MP4 Video Max. 400h / Radiometric Video Max. 50h
Video File Format
MP4 Video / Radiometric Video
Radiometric Infrared Video Streaming
Over UVC / Wi-Fi
Extendable Memory Card
Up to 64GB MicroSD Card
General
Wi-Fi
802.11 b/g/n (2.4GHz and 5GHz)
Bluetooth
Bluetooth 4.2
USB Interface
USB Type-C
LED Light
Yes
Laser
Yes, Class II, 635nm, <1mW
Battery Type
Interchangeable and Rechargeable Li-ion Battery
Battery Operating Time
Approx. 4 Hours
Battery Charging Time
Approx. 4 Hours (Fully Charged)
Power Saving Mode
Yes
Protection Level
IP54
Drop Test Height
2m (6.56ft)
Safety
IEC 61010-1
EMC
EN 301489-1 / EN 301489-17 / EN IEC 61000-6-2 / EN IEC 61000-6-3 / EN 61326-1
Vibration
2g, IEC 60068-2-6
Shock
25g, IEC 60068-2-27
Working Temperature Range
-20°C to 50°C (-4°F to 122°F)
Storage Temperature Range
-40°C to 70°C (-40°F to 158°F)
Relative Humidity
<95% Non-Condensing
Weight
Approx. 720g (1.59lb)
Dimensions
244 × 100 × 104mm (9.6 × 3.9 × 4.1in)
Tripod Mounting
UNC ¼"-20
Warranty
3 Years Product / 10 Years Detector / 2 Years Battery
