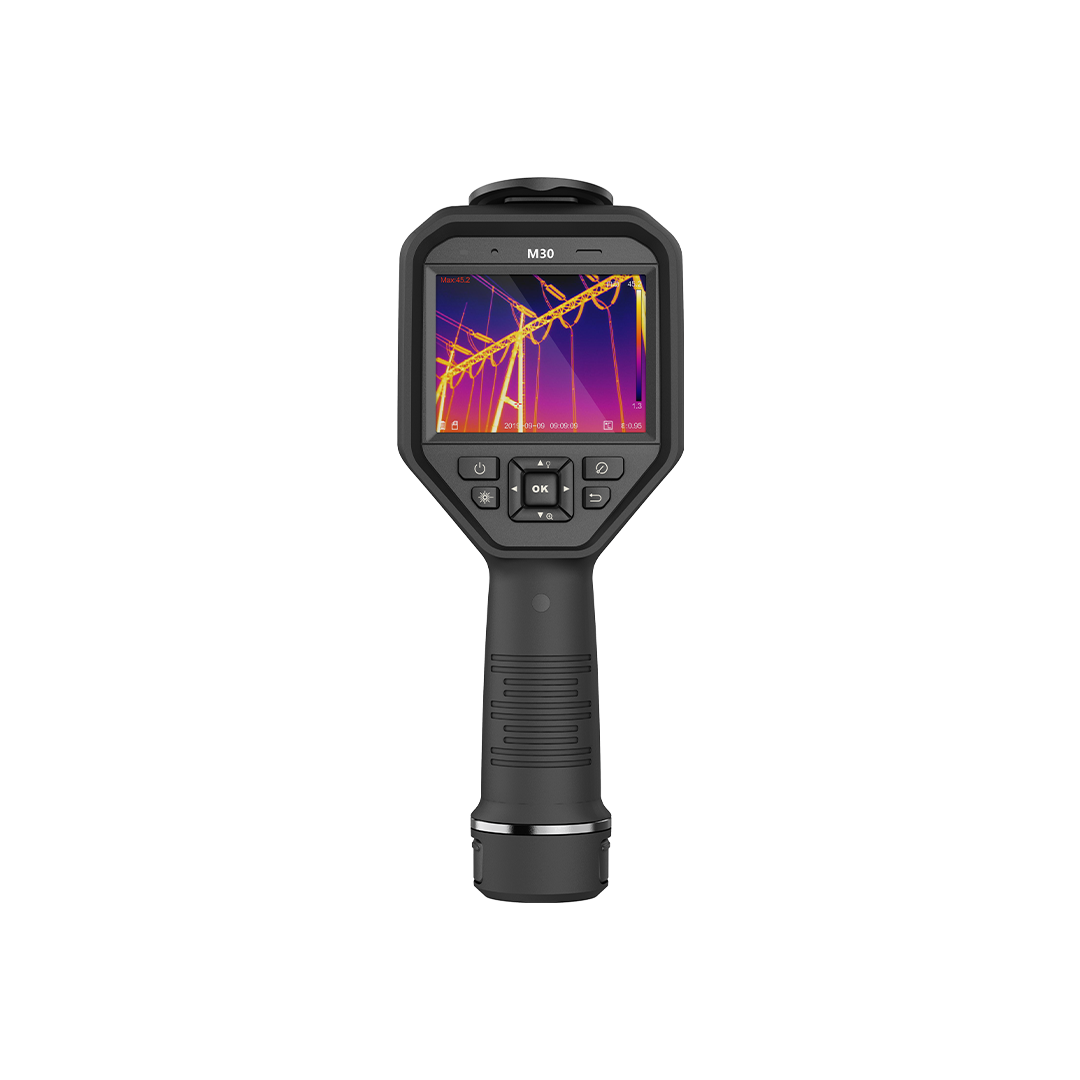

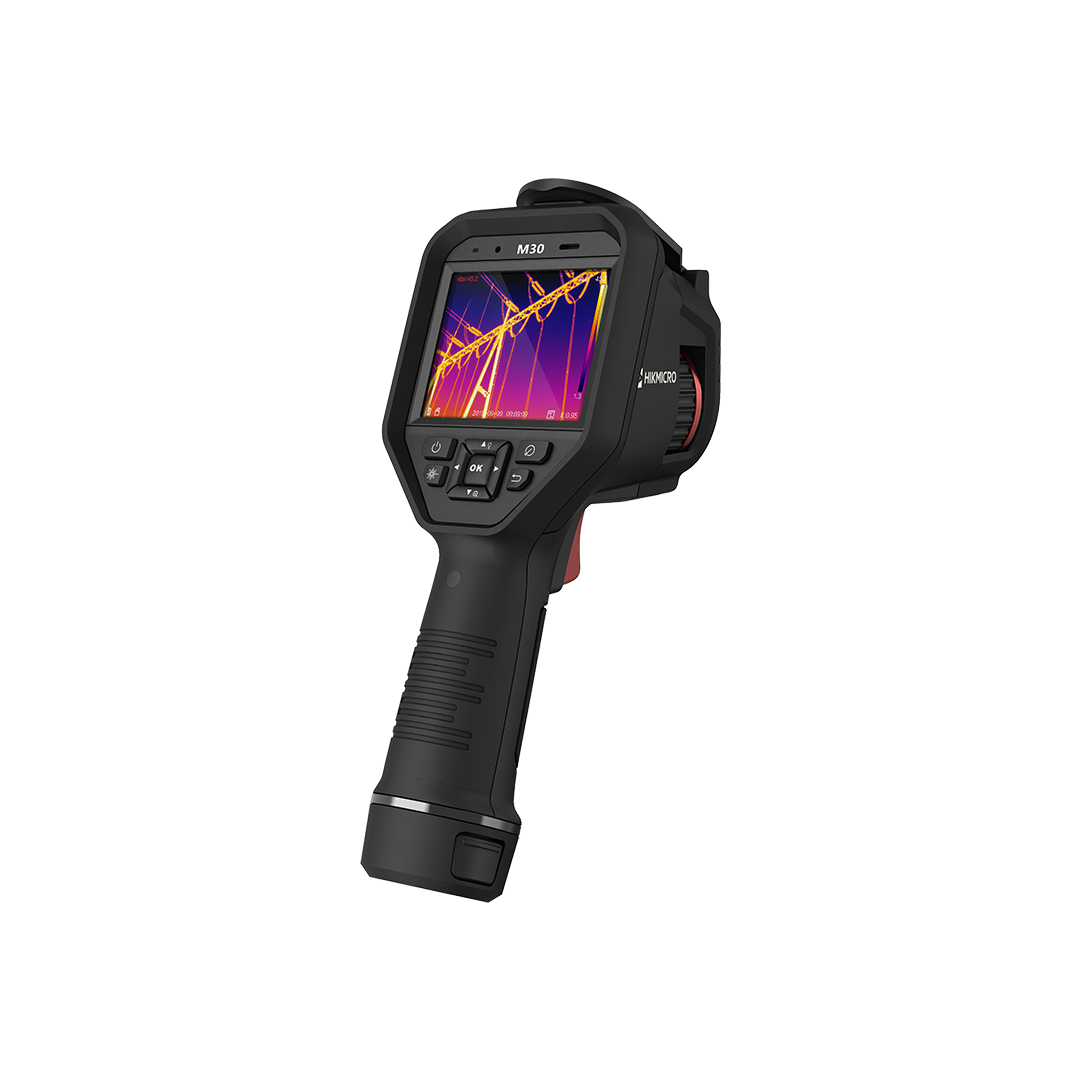

M30 Handheld Thermography Camera

Name: M30 Handheld Thermography Camera
Brand: HIKMICRO
SKU: HM-M30
Price: 1190.00 GBP
Availability: OutOfStock

SKU: HM-M30

£1,190.00

Sold out

The HIKMICRO M30 is a professional handheld thermal camera engineered for precise temperature measurement, fault detection and industrial inspection workflows. Featuring a 384 × 288 thermal detector with high sensitivity and advanced image processing technologies such as Adaptive AGC, DDE and 3D DNR, it delivers stable, high-clarity thermal imaging for building, HVAC and automotive applications. A wide temperature measurement range from -20°C to 550°C ensures versatility across low and high-temperature environments. With an 8MP visual camera, Fusion and PIP imaging modes, and a responsive 3.5-inch touchscreen display, the M30 supports fast diagnostics, accurate analysis and efficient on-site reporting.

Heading

Use this text to share information about your brand with your customers. Describe a product, share announcements, or welcome customers to your store.

Heading

Use this text to share information about your brand with your customers. Describe a product, share announcements, or welcome customers to your store.

Heading

Use this text to share information about your brand with your customers. Describe a product, share announcements, or welcome customers to your store.

Product Specification

Infrared Image

Detector Pitch

17µm

Field of View

37.5ºx28.5º

Focal Length

9.7 mm

Focus Mode

Manual Focus

Aperture

F1.0

Image Frequency

25 Hz

IR Resolution

384 x 288

Min. Focus Distance

0.2m

NETD

< 35 mK (@ 25ºC, F# = 1.0)

Spatial Resolution (IFOV)

1.75 mrad

Spectral Range

7.5 to 14 µm

Super IR

768 x 576

Measurements and Analysis

Accuracy

Max. (± 2ºC, ± 2%), for the ambient temp. 15ºC to 35ºC and object temp. above 0ºC

Level and Span Mode

Auto/Manual/1-Tap Touch-screen

Measurement Tools

Center Spot, Hot Spot, Cold Spot User-definable: Delta T, 10 spots, 1 line, 5 rectangles, and 5 circle

Object Temperature Range

-20ºC to 550ºC

Image Display

Colour Alarm

Above/Below/Interval/Insulation

Colour Palettes

White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red

Digital Zoom

1.0x to 8.0x continuous

Display

640x480 Resolution, 3.5" LCD Touch Screen

Image Modes

Thermal/Visual/Fusion/PIP/Blending Screen

Brightness

Manual

Visual Camera

3264x2448 (8 MP)

Data Storage and Communication

Storage Media

Removable 64 GB Micro SD Card

Annotations

Voice note: max. 60 seconds; Text note: max. 200 characters

Image Storage Capacity

Approx. 100,000 Images

Video File Format

MP4 video and radiometric video

Video Storage Capacity

Approx. 54 hours

General

Battery Charging Time

Approx. 4 hours fully charged

Battery Operating Time

Approx. 4 hours

Battery Type

Interchangeable and rechargeable Li-ion battery

Bluetooth

Bluetooth 4.2

Dimensions

244mm x 100mm x 104mm

Drop Test Height

2m

EMC

EN 50130-4, EN 55032, EN IEC 61000-3-2, EN 61000-3-3

Laser

Yes, Class II, Wavelength: 635 nm; Power: < 1 mW

Protection Level

IP54

Relative Humidity

< 95% non-condensing

Safety

IEC 61010-1

Shock

15g, IEC 60068-2-27

Storage Temperature Range

-20ºC to 60ºC

Tripod Mounting

UNC 1/4"-20

USB Interface

USB Type-C

Vibration

1g, IEC 60068-2-6

Weight

Approx. 660g

WiFi

802.11 b/g/n (2.4 GHz and 5 GHz)

Working Temperature Range

-10ºC to 50ºC

Also Consider

Reviews

Accessories

Downloads

Quick Start Guide User Manual Datasheet Firmware
